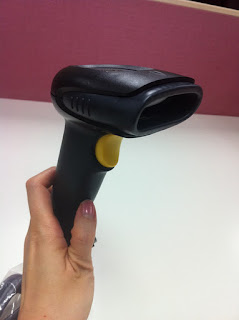

Birch BZ-188 300mm long range linear imager CCD barcode scanner
| Specification | Desciptions |
| ● Optical System: | 2500 Pixel sensor |
| ● Scan Speed: | 200 Scans/sec. |
| ● Light Source: | RED LED (660nm) |
| ● Resolution: | 0.1mm (4 mil) |
| ● PCS Value: | 60% or more |
| ● Scan Angle: | 45° |
| ● Scan Width: | Up to 180mm or more (PCS90%) |
| ● Scan Distance (PCS 90% code 39) | 20mm-50mm (4mil) |
| 30mm-70mm (5mil) | |
| 35mm-150mm (10.5mil) | |
| 40mm-175mm (13mil) | |
| 50mm-250mm (40mil) | |
| ● Host Systems Interface: | KB wedge, RS232 and USB (HID) interface |
| ● Decodable Capability: | Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Telepen. |
| ● Option decodable: | RSS-14, RSS Limited, RSS Expanded |
| Electrical | |
| ● Voltage: | 5V DC ±5% |
| ● Operation Current: | 100-120mA |
| ● Stand-by Current: | 20-30mA |
| ● Power ON current: | 125mA |
